The new DJI Zenmuse L3, a high-accuracy aerial LiDAR system features a 1535nm long-range LiDAR capable of reaching 950 m even on objects with just 10% reflectivity, while maintaining exceptional penetration capabilities. With its dual 100MP RGB cameras and high-precision POS system, geospatial data acquisition can be accelerated by covering up to 100 km2 a day. Paired with the D-RTK 3 Multifunctional Station and DJI Enterprise software, Zenmuse L3 offers an end-to-end solution that simplifies geospatial operations while generating multiple mapping deliverables from a single flight.
High-Accuracy 1535 nm LiDAR and Proprietary High-Accuracy System
Detection range of 950 m at a pulse rate of 100 kHz, tested under 100 klx ambient light and on objects with 10% reflectivity
Dual 100MP RGB Mapping Camera System
Equipped with dual 100MP 4/3 CMOS RGB sensors and a mechanical shutter. the Zenmuse L3 can achieve a ground sample distance (GSD) of 3 cm, even at a flight altitude of 300 m. Additionally, the dual RGB mapping cameras offer a horizontal field of view (FOV) of up to 107°, enabling each capture to cover a broader area.
High Pulse Rate and Multiple Returns for Superior Penetration Capability
Highly accurate spatial reconstructions can be generated with its maximum laser pulse emission frequency of 2 million points per second and support for up to 16 returns
Cover up to 100 km² Per Day

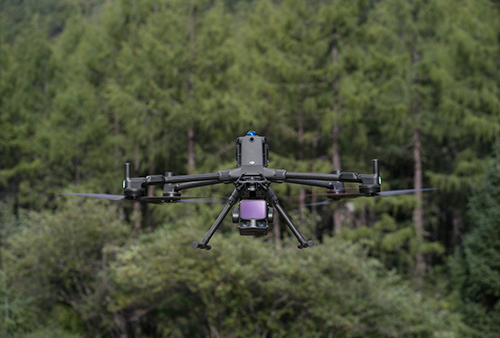

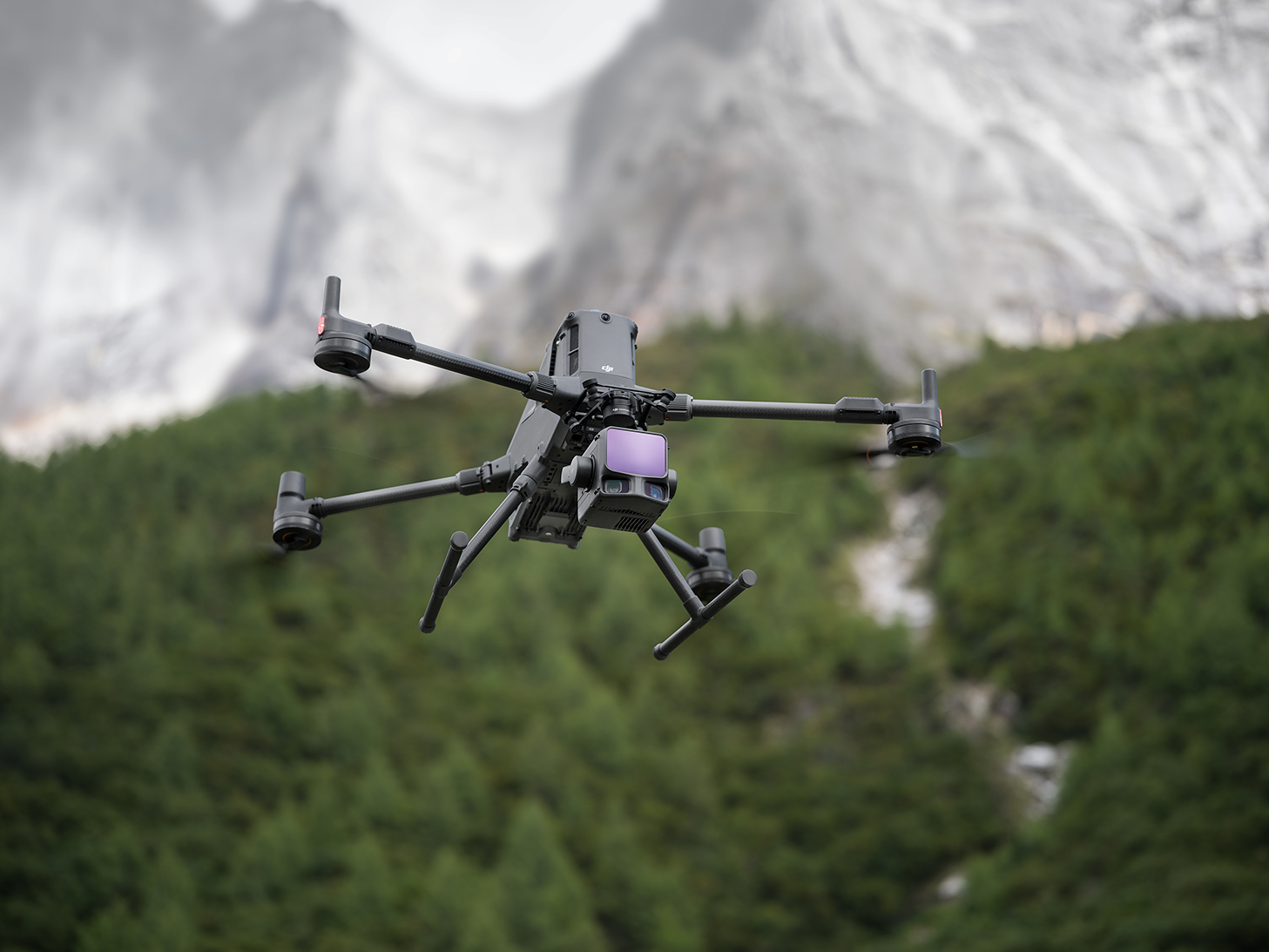

When mounted on the DJI Matrice 400, Zenmuse L3 delivers outstanding efficiency. At a typical flight altitude of 300 m, a single flight can cover up to 10 km2, enabling up to 100 km² of daily coverage. Moreover, it can capture LiDAR and RGB data simultaneously to generate a range of mapping deliverables from a single flight, including digital orthophoto maps (DOM) and digital elevation models (DEM), and more – even despite a 20% LiDAR side overlap ratio.
Seamless End-to-End Solution
Zenmuse L3 seamlessly integrates with DJI's ecosystem to deliver an end-to-end mapping solution. This includes the D-RTK 3 Multifunctional Station, DJI Pilot 2, DJI Terra, DJI Modify and DJI FlightHub 2. From data acquisition and processing to application, this unified workflow is simpler to operate and easier to master than traditional multi-platform setups, helping users efficiently complete a wide range of mapping tasks.
