The DJI Dock 4 - Always There, Always Ready
DJI Dock 4 swaps batteries in 25 seconds for 24/7 automatic operations, urgent or continuous. Its DJI Matrice 5TD features wide-angle and infrared cameras, mmWave radar, LiDAR, and AI that detects 17 object types. The DJI O4 Ground Station unlocks complex sites, while the AI-powered workflow from DJI FlightHub 2 streamlines every operation.
Airborne on Alert, Ahead of Ground Crews

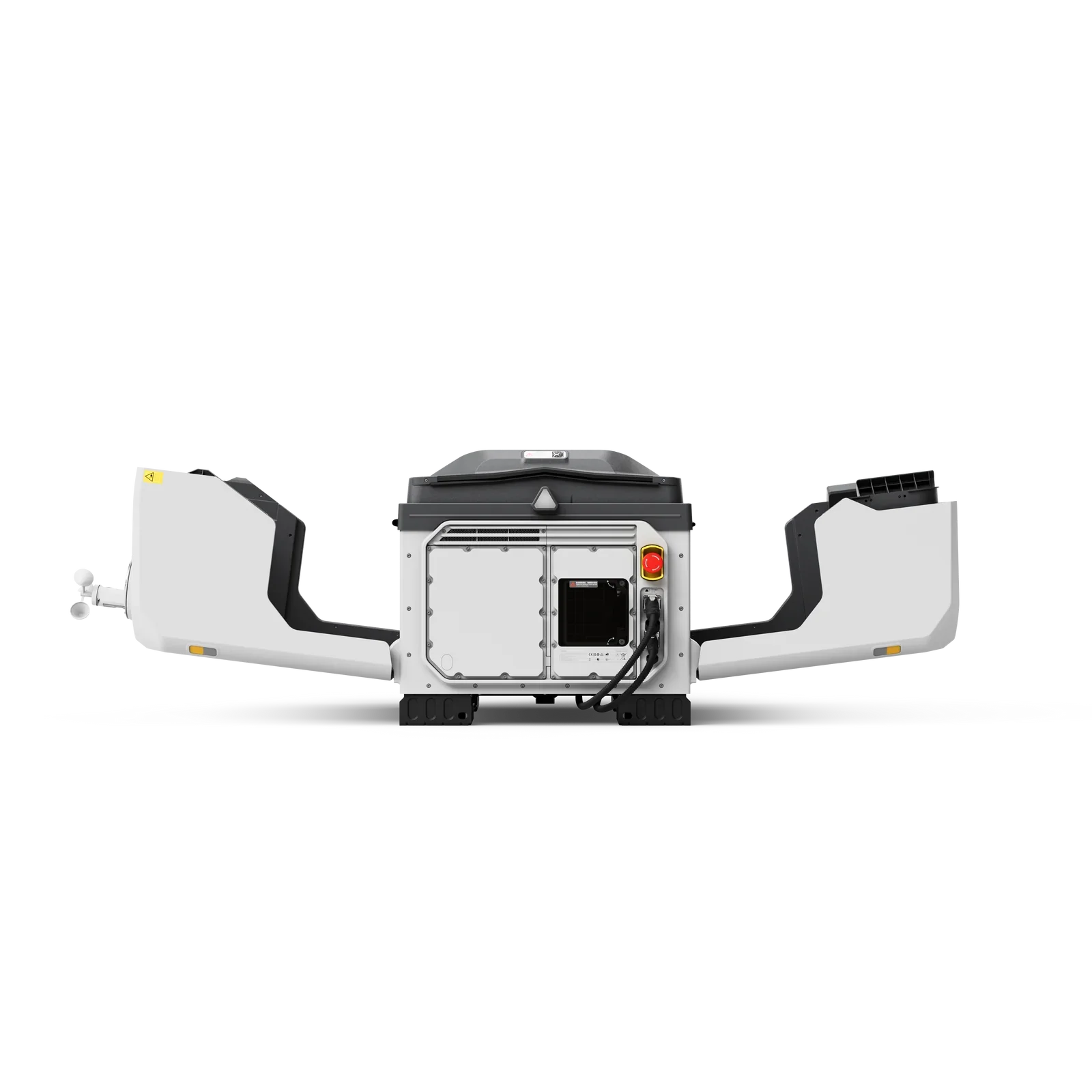

The drone launches as soon as the cover opens, flying to the scene at up to 21 m/s to arrive ahead of ground crews and instantly stream the live video. Once a command is issued, the drone launches instantly with no pilot on site needed. Nighttime and holiday emergencies get a response in seconds.
Swap, Relay, Sustain

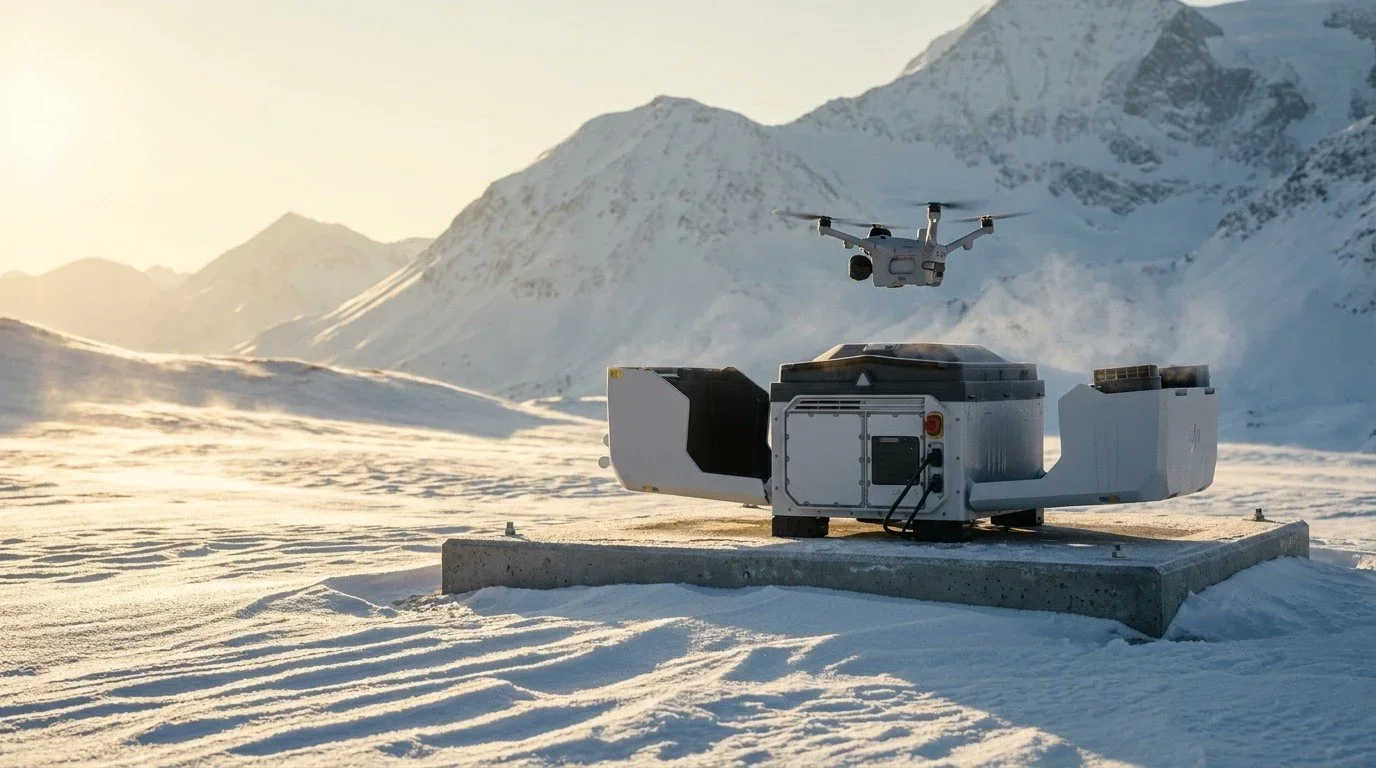

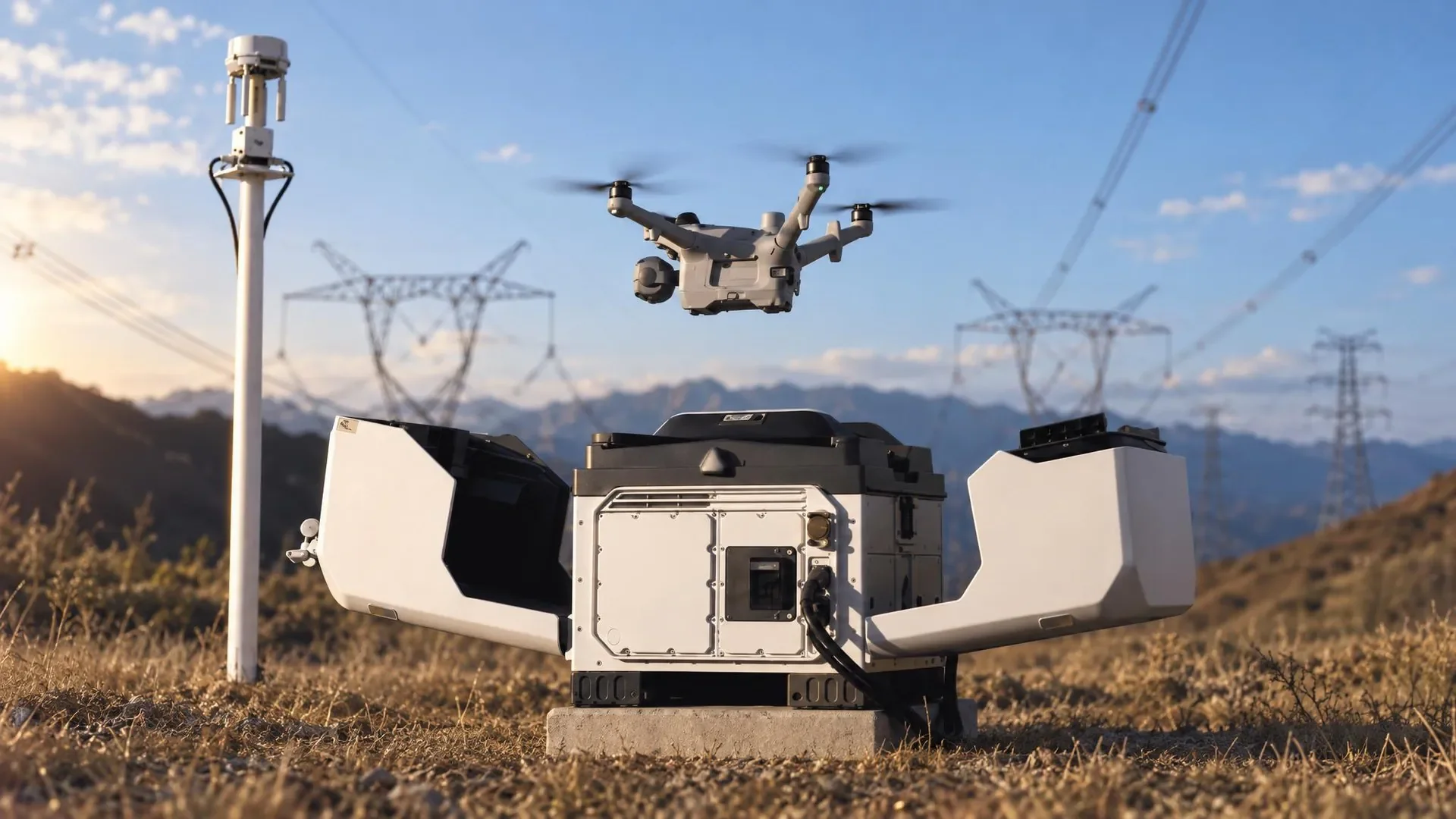

For continuous tasks like emergency response, the dock completes a fully automatic battery swap in just 25 seconds, cutting the turnaround between flights from a 30-minute recharge to just seconds. Operating reliably from -40° to 50° C (-40° to 122° F), the dock auto-preheats the batteries in the cold, and uses air conditioning in high temperatures.
Live From the Scene, Remote Yet Accurate
With low-latency livestreams and high-speed data transfer, remote commanders can access the scene in real time and make decisions from off-site. During battery swap, the drone sends flight data to the dock over a high speed wi-fi channel at average speeds of 80MB/s. Dual 4G modules, sub2G transmission and 04 Ground Station deployed at elevated position deliver stability in obstructed environments.
Near and Far, Day and Night

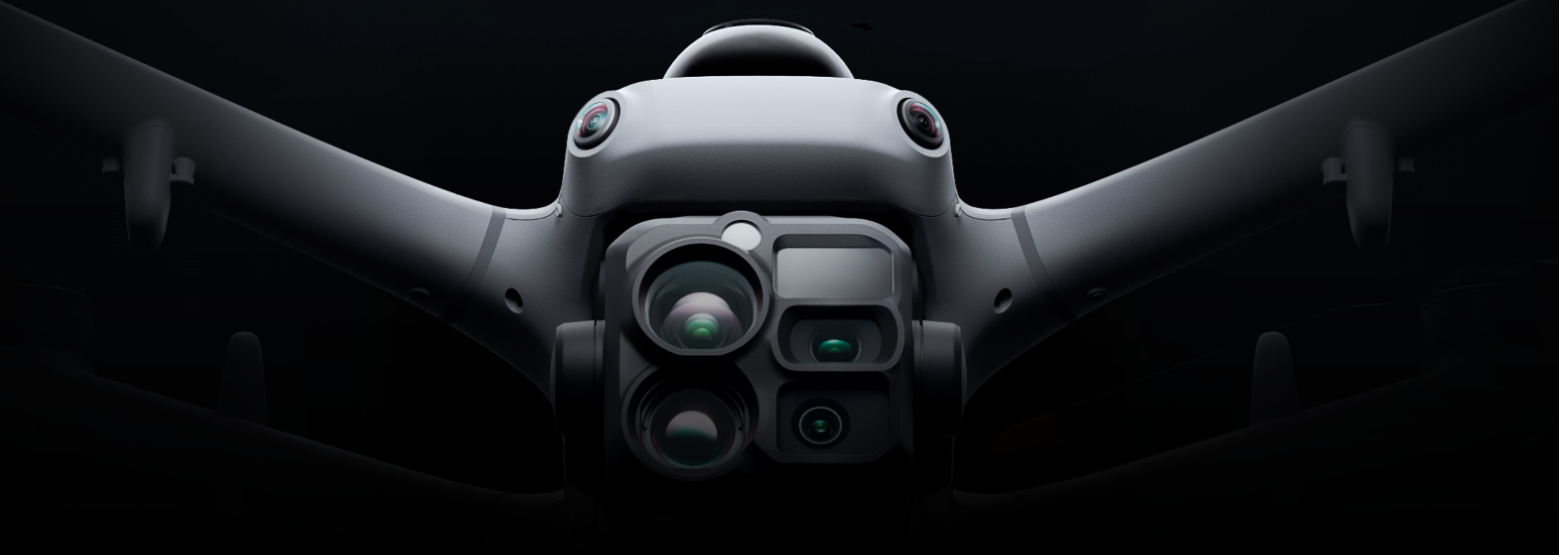

Matrice 5TD combines telephoto imaging, infrared imaging, laser ranging, and full-color night vision while delivering aerial survey accuracy up to 10 cm at 12MP. Daytime checks, nighttime security, and surveying are all handled by one drone, with no airframe swaps between scenarios, boosting equipment ROI by 50%.
More Payloads, More Flexibility
Matrice 5TD carries up to 450 g of payload, with side PSDK mounts and a top mount that can be used simultaneously. Mix and match accessories to suit the task. With three mounting positions and an effective payload capacity of up to 450 g, the drone can provide lighting, broadcasting, and ground safety in a single flight. Mount a speaker, spotlight, and parachute together to provide aerial voice guidance and layered lighting during nighttime search operations, keeping ground crews safe. A built-in Customizable Warning Light supports custom colors and flash patterns, requiring no additional installation.
Safe Flight, Even in Complex Environments
With three-directional mmWave radar, a rotating LiDAR, and a six-directional vision sensing system working together, Matrice 5TD achieves precise obstacle sensing, even inside a substation packed with live equipment or around crossing distribution lines. Combining a rotating LiDAR, mmWave radar, and full-color low-light fisheye sensors, this system detects thin obstacles, including powerlines, even at night. Six-directional sensing works with six high-res low-light fisheye sensors to maintain obstacle sensing even under city lights at night.
